Send Inquiry1000 Roll Forming Machinery
Product Details:
- Computerized Yes
1000 Roll Forming Machinery Price And Quantity
- 36000-110000 USD ($)/Set
- 36000.00 - 110000.00 USD ($)/Set
- 1 Set
1000 Roll Forming Machinery Product Specifications
- Yes
1000 Roll Forming Machinery Trade Information
- 20 Set Per Year
- 90 Days
Product Description

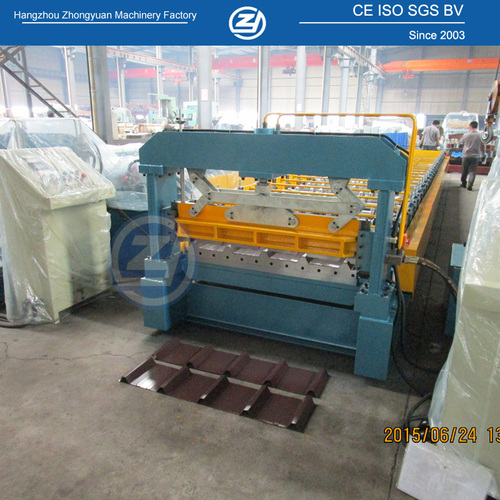

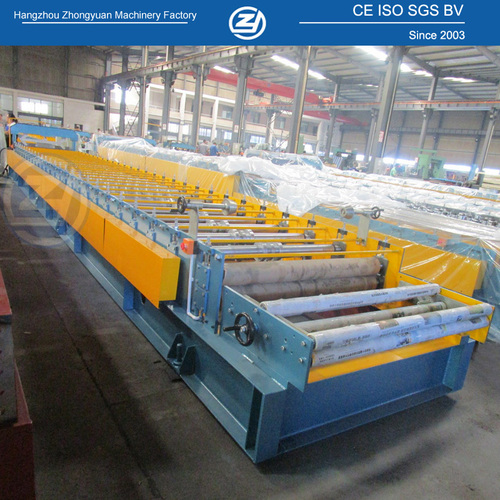

1000 Roll Forming Machinery
Since 2003, our firm has been engaged in offering of a wide assortment of 1000 Roll Forming Machinery. Designed with powerful hydraulic cutting system, the offered machinery is precisely assembled using premium quality components by diligent technical experts. This machinery is widely used to bend and cut metal sheets for making roofing shades. Apart from this, the provided 1000 Roll Forming Machinery is available for our customers at pocket friendly rates.
- Colored sheet of steel
- Extent ranges from 0.4mm to 0.7mm
- The output strength is 235Mpa
Specifications of Machine:
- The size of length, width and height is 9m, 1.7m and 1.6m, respectively.
- Weight of the machine is some 8 tonne.
- Speed of production and forming is 8m and 20m per minute, appropriately.
- Primary power of the motor is 7.5Kw that depends upon the finished design.
- The power is 380V/3Phase/50Hz.
Machine Elements:
| Decoiler (Hydraulic/ Manual decoiler for alternative) | 1 set |
| Guiding and Feeding Tool | 1 set |
| Primary Roll Making Machinery | 1 set |
| Hydraulic Fragmenting System | 1 set |
| Regulating System | 1 set |
| Run Out Table with Mechanical Stacker for alternative | 2 pieces |
Specifications of Elements:
- Optimum capacity of decoiler is 5000 kilograms
- Power of hydraulic station is around 2.2Kw, which relies on the final design
- Mitsubishi PLC control system with touch display
- Cutter cuts sheets to accurate length
Machine material:
- Electric Components: Mitsubishi transducer and PLC imported from Japan
- Rust proof roller: No. 45 formed steel that is coated with 0.05mm dense chrome
- Well enduring active shaft: Superlative class No. 45 carbon operated steel with diameter of 72mm
- Cutter Knife: Cr12 cast steel with suppressed treatment
- Accuracy: Shafts are formed by pulverizing machine not less than twice. Roller are CNC handled
