Double Layer Roll Forming Machine

Product Details:

Computerized Yes
Share Your Product:

36000-110000 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

Double Layer Roll Forming Machine Price And Quantity

Price 36000-110000 USD ($)/Set
Price Range 36000.00 - 110000.00 USD ($)/Set
Minimum Order Quantity 1 Set

Double Layer Roll Forming Machine Product Specifications

Computerized Yes

Double Layer Roll Forming Machine Trade Information

Supply Ability 20 Set Per Year
Delivery Time 90 Days

Product Description

With an earnest motto to provide our clients with bets in class products in a stipulated time frame, we have become a reliable manufacturer, trader and supplier of a wide gamut of Double Layer Roll Forming Machine. The offered machine is broadly utilized as a part of an expansive number of commercial enterprises. Our range of Double Layer Roll Forming Machine is best viewed for highlight, for example, high proficiency, execution arranged configuration, familiar operation,etc.

Detailed Product Description :

Quality System:	ISO9001	Roller Material:	No.45 Steel, Plated With Chrome On Surface.
Cutter Material:	CR12 Mould Steel	Shaft For Roller:	72mm Dia. Solid Steel
Main Power:	7.5kw	Cutting Style:	Automatic Hydraulic Cutting
Forming Speed:	About 20m/min.	Controller:	Mitsubishi PLC, Screen
Guarantee:	One Year Guarantee Time, Lifetime Service	Machine's Weight:	14.5T

1000 mm width Double Layer Roll Forming Machine with Automatic Hydraulic Cutting

Machine’s Feature: One machine can make two kinds of profile. Client’s profile available.

Technical data of double layer roll forming machine :

Suitable material	Q235 color steel sheet;0.3-0.7mm,
Forming speed	about 20m/min
Power Requirement	Main motor power: 7.5 Kw(Depend on final design)
Power Requirement	Hydraulic station power: 2.2Kw(Depend on final design)
Material of forming rollers	No.45 steel, plated with chrome on surface.
Material of cutter	Cr12 mould steel with quench treatment, HRC58-60
Material of shaft	High quality 45# steel with heat treatment. Roller grinder milling.
Shaft diameter	72mm
Controlling system	Mitsubishi PLC & converter
Total weight of machine	About 14500KGS
Machine’s size	about 14.5m×1.8m× 1.5m (Depend on final design)
Shipping	1x40GP and 1X20GP containers can load one machine

Other Products in 'Double Layer Roll Forming Machine' category

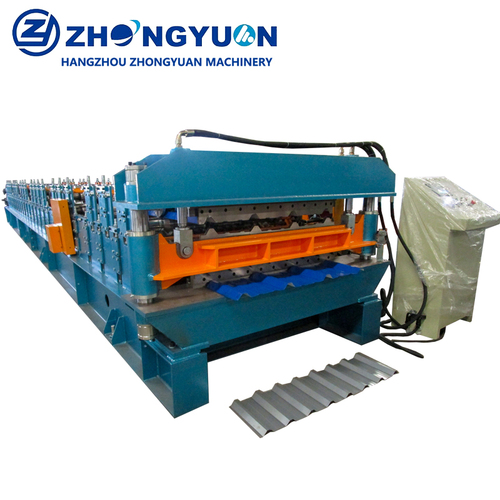

Customized double layer roll forming machine for trapezoidal panel and corrugated panel Price : 49000 USD ($)/Set Minimum Order Quantity : 1 Weight : 15155 Kilograms (kg) Control System : PLC Control Automatic Grade : Automatic Warranty : 1 Dimension (L*W*H) : 11.9*1.65*1.6 Meter (m) Cutting System : Hydraulic cutting system Material : steel coil sheet Rolling Speed : 3035 m/m Capacity : 2530 M/min Cutting Thickness : 0.40.7 Millimeter (mm) Voltage : 415 Volt (v) Computerized : No Type : ROLL FORMING MACHINE Color : blue

Send Inquiry

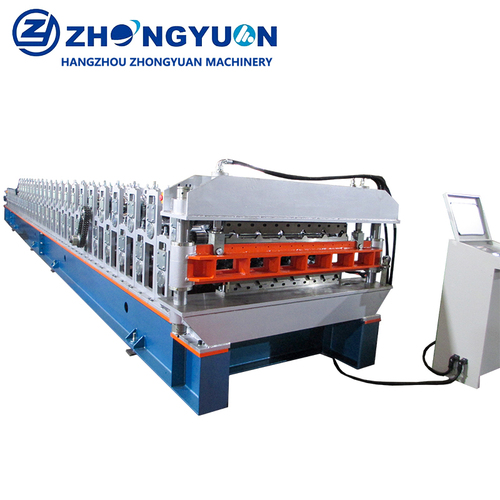

Roofing sheets making double layer roll forming machine Price : 61000 USD ($)/Set Minimum Order Quantity : 1 Weight : 16515 Kilograms (kg) Control System : PLC Control Automatic Grade : Automatic Warranty : 1 Dimension (L*W*H) : 13.8*1.75*1.65 Meter (m) Cutting System : Hydraulic cutting system Material : steel coil sheet Rolling Speed : 3035 m/m Capacity : 3035 M/MIN Cutting Thickness : 0.40.7 Millimeter (mm) Voltage : 415 Volt (v) Computerized : No Type : ROLL FORMING MACHINE Color : blue

Send Inquiry

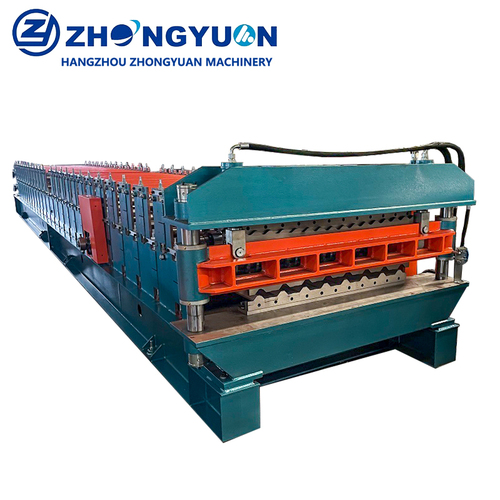

Double Layer Galvanised Metal Roof Tiles Roll Forming Machine Price : 48000 USD ($)/Set Minimum Order Quantity : 1 Weight : 14615 Kilograms (kg) Control System : PLC Control Automatic Grade : Automatic Warranty : 1 Dimension (L*W*H) : 11.6*1.75*1.6 Meter (m) Cutting System : Hydraulic cutting system Material : steel coil sheet Rolling Speed : 3035 m/m Capacity : 3035 M/MIN Cutting Thickness : 0.40.7 Millimeter (mm) Computerized : No Type : ROLL FORMING MACHINE Color : blue

Send Inquiry

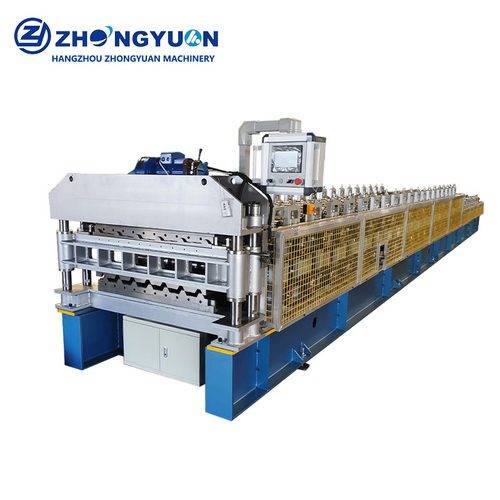

Metal roof sheet Double layer roll forming machine Price : 65000 USD ($)/Set Minimum Order Quantity : 1 Weight : 14000 Kilograms (kg) Control System : PLC Control Automatic Grade : Automatic Warranty : 3 year Dimension (L*W*H) : 13.4Ã1.8Ã 1.7 Meter (m) Cutting System : Electric cutting Material : Steel coil sheet Rolling Speed : 2530 m/m Capacity : 2530m/min Cutting Thickness : 0.30.7 Millimeter (mm) Voltage : 415 Volt (v) Type : zhongyuan Color : blue
