Hot Sale Metal Steel Strip CZ Purlin Interchangeable Roll Forming machine

Product Details:

Type ROLL FORMING MACHINE
Material steel coil sheet
Computerized No
Automatic Grade Automatic
Control System PLC Control
Rolling Speed 18 m/m
Cutting System Hydraulic cutting system
Share Your Product:

106000 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

Hot Sale Metal Steel Strip CZ Purlin Interchangeable Roll Forming machine Price And Quantity

Minimum Order Quantity 1 Set
Price 106000 USD ($)/Set

Hot Sale Metal Steel Strip CZ Purlin Interchangeable Roll Forming machine Product Specifications

Color blue
Warranty 1
Automatic Grade Automatic
Weight 23000 Kilograms (kg)
Control System PLC Control
Cutting System Hydraulic cutting system
Rolling Speed 18 m/m
Dimension (L*W*H) 12.4*2.1*.2.0 Meter (m)
Material steel coil sheet
Voltage 415 Volt (v)
Type ROLL FORMING MACHINE
Cutting Thickness 1.5-4 Millimeter (mm)
Computerized No

Hot Sale Metal Steel Strip CZ Purlin Interchangeable Roll Forming machine Trade Information

FOB Port Ningbo port or Shanghai port
Payment Terms Telegraphic Transfer (T/T)
Supply Ability 5 Set Per Month
Delivery Time 120 Days
Packaging Details 1*20 GP Container and 1*40GP Container
Main Export Market(s) Central America, Australia, North America, South America, Western Europe, Middle East, Eastern Europe, Asia, Africa
Main Domestic Market All India
Certifications CE SGS ISO

Product Description

CZ Interchangeable Purlin Machine

Quick details:

Brand: Zhongyuan

Machine model:CZ Interchangeable Purlin Machine

Raw material:1.5-4.0mm GI steel coils

Punching style: stop to punch

Line speed: about 15m/min.

Gross weight: 23000kgs

Diameter of shaft for rollers: dia. 82mm

Punching head material: CR12MOV. Heat treatment.

Cutting Blade: CR12MOV. Heat treatment. Guarantee 3 years usage life.

Machine Dimension: About 12.5mX2.1mx1.7m

Controller: Mitsubishi PLC , converter and screen. Fully automatic running.

Workers required: two persons.

Warranty period :24 months

After Sales Service

As to the installation of machines, we send our technicians to install it and to train your staffs to operate and maintain the machines.We also have machine install video,and can training online.

Other Products in 'Purlin Roll Forming Machine' category

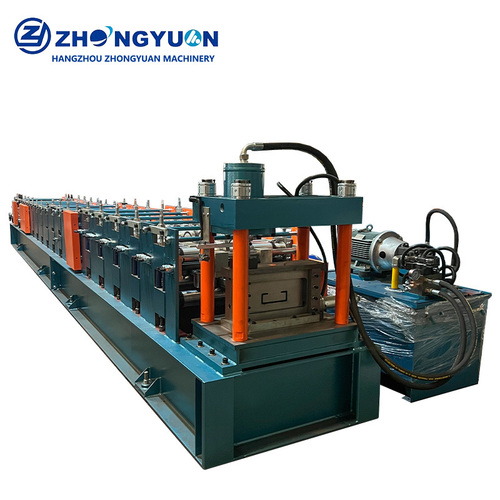

Post-cutting C Purlin Machine for Steel Frame Price : 43000 USD ($)/Set Minimum Order Quantity : 1 Computerized : No Weight : 7170 Kilograms (kg) Automatic Grade : Automatic Warranty : 3 year Dimension (L*W*H) : 9.8*1.52*1.6 Meter (m) Rolling Speed : 12 m/m Control System : PLC Control Cutting Thickness : 1.02.5 Millimeter (mm) Voltage : 415 Volt (v) Type : roll forming machine Cutting System : hydraulic cutting Color : blue Material : Steel coil sheet

Send Inquiry

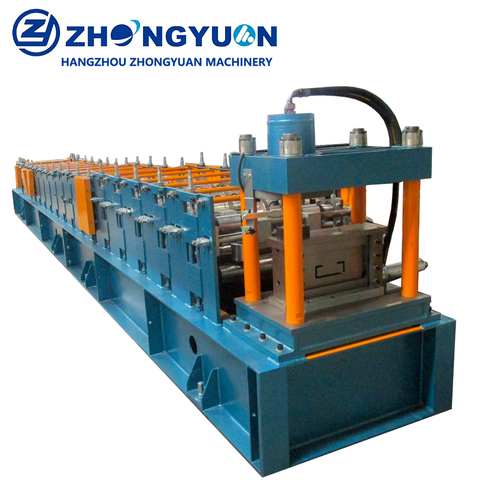

High Efficiency Hot Sell C Shape Purlin Roll Forming Machine Manufacturer Price : 44000 USD ($)/Set Minimum Order Quantity : 1 Computerized : No Weight : 7170 Kilograms (kg) Automatic Grade : Automatic Warranty : 1 Dimension (L*W*H) : 9.8*1.52*1.7 Meter (m) Rolling Speed : 1820 m/m Control System : PLC Control Cutting Thickness : 1.53 Millimeter (mm) Voltage : 415 Volt (v) Type : ROLL FORMING MACHINE Cutting System : Hydraulic cutting system Capacity : 1820m/min Material : steel coil sheet

Send Inquiry

CZ Purlin roll forming machine Price : 104000 USD ($)/Set Minimum Order Quantity : 1 Computerized : No Weight : 23000 Kilograms (kg) Automatic Grade : Automatic Warranty : 2 YEARS Dimension (L*W*H) : 17.5X2.1x1.6 (L*W*H) Millimeter (mm) Rolling Speed : 1518 m/m Control System : PLC Control Voltage : 415 Volt (v) Type : CZ purlin roll forming machine Capacity : 1215 m/min m3/hr Color : blue

Send Inquiry

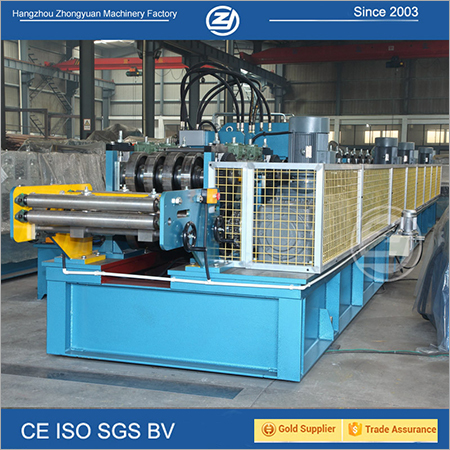

Automatic Z Purlin Roll Forming Machine Minimum Order Quantity : 1 Computerized : Yes Weight : 22 Kilograms (kg) Automatic Grade : Automatic Warranty : 12 MONTHS Dimension (L*W*H) : 17.5x2.1x1.8 Meter (m) Rolling Speed : 18 m/m Control System : PLC Control Cutting Thickness : 1.53.0 Millimeter (mm) Cutting System : automatic hydraulic
