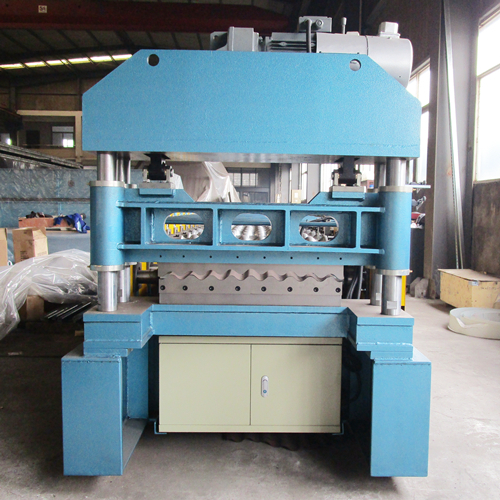

Send InquiryIron Roofing Sheet Roll Forming Making Machine
Product Details:
- Computerized Yes
- Control System PLC Control
- Rolling Speed 20-25 mm/m
- Cutting System Hydraulic cutting
- Cutting Thickness 7.62 - 20.32 Millimeter (mm)
- Voltage 415 Volt (v)
- Weight 8500 Kilograms (kg)
Iron Roofing Sheet Roll Forming Making Machine Price And Quantity
- 25000.00 - 35000.00 USD ($)/Set
- 1 Set
- 25000-35000 USD ($)/Set
Iron Roofing Sheet Roll Forming Making Machine Product Specifications
- Yes
- PLC Control
- 415 Volt (v)
- 12 MONTHS
- 20-25 mm/m
- 8500 Kilograms (kg)
- 7.62 - 20.32 Millimeter (mm)
- Hydraulic cutting
Iron Roofing Sheet Roll Forming Making Machine Trade Information
- Ningbo
- Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
- 80 Set Per Year
- 60 Days
- Western Europe, Australia, North America, Eastern Europe, Middle East, Central America, South America, Asia, Africa
- All India
Product Description
Our renowned company is able to fulfill the specific demands of our customers by providing highly efficient Iron Roofing Sheet Roll Forming Making Machine. Owing to its high operational speed, the offered machine is well suited for making roofing sheet rolls of required dimension. The provided machine is manufactured by utilizing quality examined components and ultra-modern methods by our experts. Also, this Iron Roofing Sheet Roll Forming Making Machine is accessible at competitive prices.
Features:
- Robust construction
- Anti-corrosive body
- Easy to install and maintain
- Generates low noise
Iron Roofing Sheet Roll Forming Making Machine
- Product Feature: The product formed by this roll forming machines looks beautiful and widely used as the roof of garden, factory, hotel, exhibition center,etc
Components
| Decoiler (manual/ hydraulic decoiler for option) | 1set |
| Feeding & guiding device | 1set |
| Pre-cutting device | for option |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table (auto. Stacker for option) | 1.5m/ pc, 2 pcs |
Parameters
| Item | Specification | |
| Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness (mm) | 0.4-0.7 | |
| Yield strength (mpa) | 235-345 | |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | About 20-25 | |
| Cutter material | Cr12 mold steel | |
| Main motor power (kw) | 7.5 kw (Depend on final design) | |
| Hydraulic station power | 2.2 kw (Depend on final design) | |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) | |
| Machine`s size | About 10.3 x 1.6 x 1.6m (Depend on final design) | |
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting Product to Run Out Table
