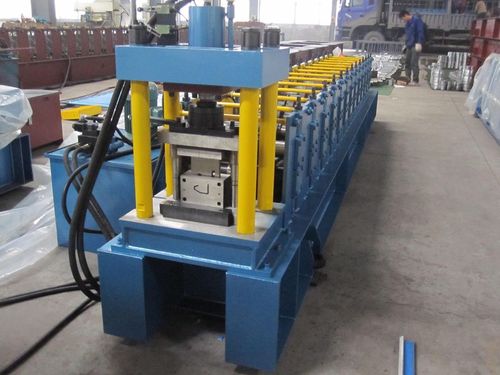

metal shelf roll forming machine

Product Details:

Type Z shape roll forming machine
Material metal steel machine
Capacity 20-25 m/min m3/hr
Computerized No
Automatic Grade Automatic
Control System PLC Control
Rolling Speed 20-25 m/m
Share Your Product:

108000 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

metal shelf roll forming machine Price And Quantity

Price 108000 USD ($)/Set
Minimum Order Quantity 1 Set

metal shelf roll forming machine Product Specifications

Color blue
Cutting Thickness 1.5-3.0 Millimeter (mm)
Automatic Grade Automatic
Voltage 415 Volt (v)
Dimension (L*W*H) 12*1.7*2.5 Meter (m)
Computerized No
Control System PLC Control
Rolling Speed 20-25 m/m
Warranty 3 year
Capacity 20-25 m/min m3/hr
Weight 16500 Kilograms (kg)
Type Z shape roll forming machine
Material metal steel machine
Cutting System hydraulic cutting

Product Description

Storage shelf roll forming machine

Quick details:

Brand: Zhongyuan

Machine name:Storage shelf roll forming machine

Raw material:GI steel coils or black steel coils

Raw material thickness :2.0-2.5 mm

Motors required :22+5.5KW

Punching style: Servo controlling and continuous punching

Forming speed: about15 m/min.

Gross weight: 16500kgs

Diameter of shaft for rollers: dia. 82mm

Punching head material: CR12MOV. Heat treatment.

Cutting Blade: CR12MOV. Heat treatment. Guarantee 3 years usage life.

Machine size: About 12m*1.7m*2.65m

Controlling system : Mitsubishi PLC , converter and screen.

Guarantee term two years

Delivery time: within 80 days.
