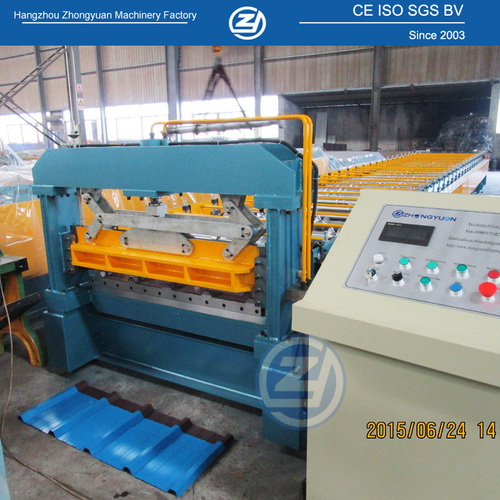

Profiled Metal Cladding Machine

Product Details:

Computerized Yes
Share Your Product:

36000-110000 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

Profiled Metal Cladding Machine Price And Quantity

Price 36000-110000 USD ($)/Set
Price Range 36000.00 - 110000.00 USD ($)/Set
Minimum Order Quantity 1 Set

Profiled Metal Cladding Machine Product Specifications

Computerized Yes

Profiled Metal Cladding Machine Trade Information

Supply Ability 20 Set Per Year
Delivery Time 90 Days

Product Description

Our company is able to cater the specific demands of clients by offering a wide gamut of Profiled Metal Cladding Machine. This machine is widely used for making metal cladding and wall cladding. Under experts direction, the provided machine is manufactured with precision using excellent quality components by our adept troop of technocrats. Besides, the provided Profiled Metal Cladding Machine can be purchased in different specifications from us.

Features:

High speed functioning
Noiseless operation
Strong construction
Easy to operate

Profiled Metal Cladding Machine

Raw Material:

Material: color steel sheet
Yield strength: 235Mpa
Thickness: 0.4-0.7mm

Machine components:

Decoiler (manual decoiler and hydraulic decoiler for option) : 1 set
Feeding & guiding device : 1 set
Main roll forming machine : 1 set
Hydraulic cutting system : 1 set
Controlling systemv1 set
Run out table (auto. Stacker for option) : 2 pcs

Parameters

Item	Specification
Roller material	45#Chrome steel
Forming speed(m/min)	About 20-25
Speed adjusting mode	AC Frequency
Roller drive	Decelerating motor + Chain drive
Cutting mode	Hydraulic cutting
Cutter material	Cr12 mold steel
Main motor power (kw)	7.5 kw (Depend on final design)
Hydraulic station power	2.2 kw (Depend on final design)
Uncoiler's loading capacity	Max. Capacity: 5000kgs (can be increased to be 10T)
Machine`s size	About 12 x 1.6 x 1.6m (Depend on final design)

Process flow:

Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting Product to Run Out Table

Packing:

One 40feet container for loading one set machine with decoiler.
Main machine body and decoiler is load naked (tighten to container with steel wire rope).
Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days after received advaced payment

Other Products in 'Roll Forming Machines' category

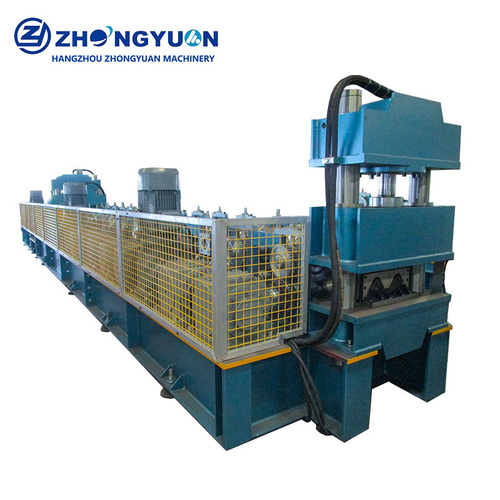

Metal Guardrail roll forming machine Price : 109000 USD ($)/Set Minimum Order Quantity : 1 Computerized : No Control System : PLC Control Automatic Grade : Automatic Warranty : 3 years Voltage : 415 Volt (v) Dimension (L*W*H) : 13.5 *1.6*1.8 Meter (m) Cutting Thickness : 23 Millimeter (mm) Rolling Speed : 8 m/m Cutting System : hydraulic station
