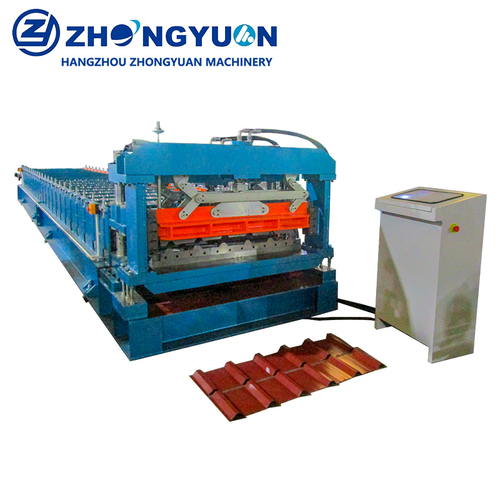

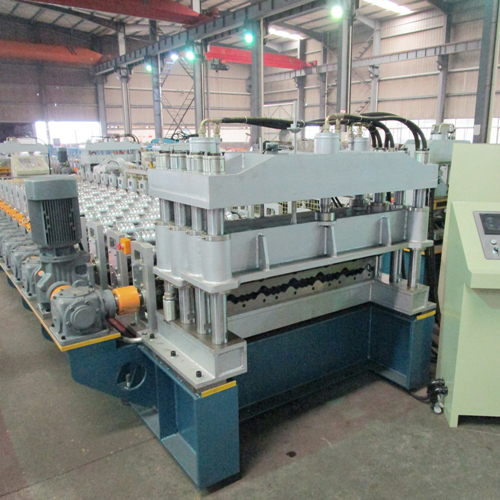

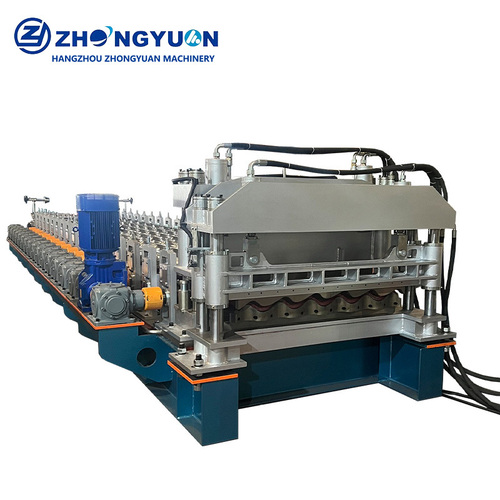

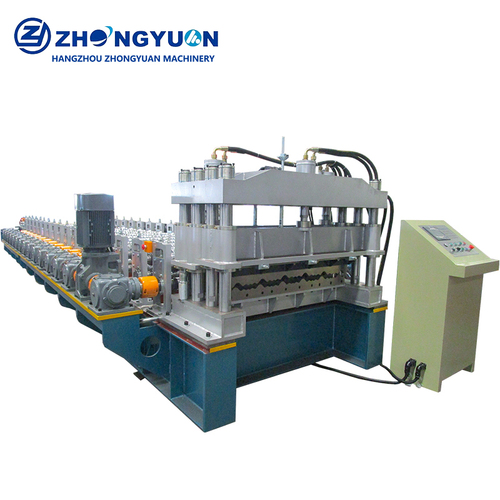

Roof Tile Making Machine

Product Description

Powered by our in-depth market knowledge, we are betrothed in offering a wide spectrum of Tile Making Machine. This machine is ideally used for making roof tiles in desired sizes and shapes. By our dexterous professionals, the provided machine is manufactured with optimum efficiency using top class components and contemporary techniques. Also, this Tile Making Machine is appreciated for its low noise generation and energy efficiency.

Features:

• Rugged design
• Trouble free operation
• Seamless performance
• Corrosion proof surface

Roof Tile Making Machine

Raw Material:
1.  Material: color steel sheet
2.  Yield strength: 235Mpa
3.  Thickness: 0.4-0.6mm

Machine spec.
1. Size: about 9*1.7*1.6m (L*W*H)
2. Weight: About 8.5ton
3.  Forming Speed: 8m/min.
5. Power : 380V/3Phase/ 50Hz
6.  Main motor power: 5.5Kw(Depend on final design)


Machine components:
Decoiler (manual decoiler and hydraulic decoiler for option)    1 set
Feeding & guiding device     1 set
Main roll forming machine    1 set
Press device                          1 set
Hydraulic cutting system      1 set
Controlling system               1 set
Run out table (auto. Stacker for option)       2 pcs

Components spec.:
1.  Decoiler Max. Capacity: 5000kgs
2.  Hydraulic station power: About 5.5Kw (Depend on final design)
3.  Control system: Mitsubishi PLC with touch screen
4.  Cutting length: Cut-to-length

Packing:
1. One 40feet container for loading one set machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 60 days after received advanced payment

Trade terms: FOB, C&F, CIF available.
