Send InquiryRoofing Sheet Making Machine
Product Details:
- Computerized Yes
Roofing Sheet Making Machine Price And Quantity
- 36000-110000 USD ($)/Set
- 36000.00 - 110000.00 USD ($)/Set
- 1 Set
Roofing Sheet Making Machine Product Specifications
- Yes
Roofing Sheet Making Machine Trade Information
- 20 Set Per Year
- 90 Days
Product Description
Our company is able to satisfy the needs of our patrons by manufacturing, exporting and supplying a wide assortment of Roofing Sheet Making Machine. Sternly examined on varied quality aspects, this machine is manufactured with the help innovative techniques by our diligent technocrats. Owing to its high operational fluency, the provided machine is extensively used for making roofing sheets in desired dimensions. Moreover, this Roofing Sheet Making Machine is available at competitive prices.
Features:
- Easy and safe to operate
- Designed with necessary safety mechanism
- Shock proof body
- Equipped with PLC and touch screen display

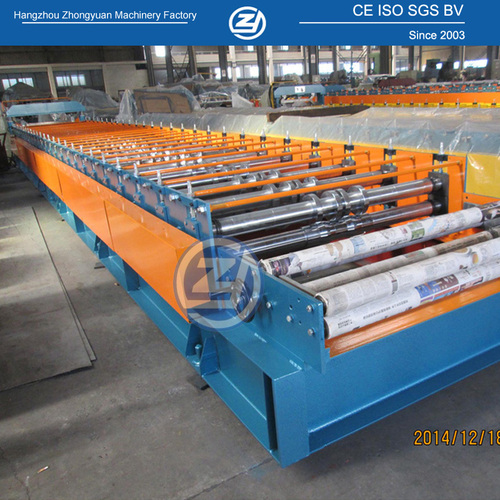

Roofing Sheet Making Machine
Machine main material
| Electric elements | Mitsubishi PLC with touch cscreen & transducer from Japan. |
| Anti-rust roller | High grade No. 45 forged steel. Plated with 0.05mm hard chrome |
| Well resisting active shaft | High grade No. 45 carbon wrought steel. 82mm solid steel. |
| Cutter blade | Cr12 mould steel with quenched treatment |
| Precision | shafts are tooled by grinding machine at least twice. Rollers are CNC processed. |
Raw Material:
- Material: steel sheet
- Yield strength: 235Mpa
- Thickness: 0.4-0.7mm
Machine spec.
- Size: about 11 x 1.7 x 1.7m (L x W x H)
- Weight: About 8.5ton
- Forming Speed: 20m/min.
- Power : 380V/3Phase/ 50Hz
- Main motor power: 7.5Kw(Depend on final design)
Machine components:
- Decoiler (manual decoiler and hydraulic decoiler for option) 1 set
- Feeding & guiding device : 1 set
- Main roll forming machine : 1 set
- Hydraulic cutting system : 1 set
- Controlling system: 1 set
- Run out table (auto. Stacker for option) : 2 pcs
Packing:
- One 40feet container for loading one set machine with decoiler.
- Main machine body and decoiler is load naked (tighten to container with steel wire rope).
- Spare parts and operating tools are loading in tooling box.
