Send InquiryCZ Changeable Purlin Forming Machine
Product Details:
- Computerized Yes
CZ Changeable Purlin Forming Machine Price And Quantity
- 36000.00 - 110000.00 USD ($)/Set
- 1 Set
- 36000-110000 USD ($)/Set
CZ Changeable Purlin Forming Machine Product Specifications
- Yes
CZ Changeable Purlin Forming Machine Trade Information
- 20 Set Per Year
- 90 Days
Product Description
Technical Data of CZ Changeable Purlin Forming Machine
| Suitable Material | Cold-rolled steel strip and heat-treated galvanized steel strip |
| Thickness of raw material | 1.5-3.2mm (235-345Mpa) |
| Size of C purlin | 100-305mm adjustable (special size available) |
| Material of roller | Cr12 mould steel being quenched treatment,HRC58-60 |
| Material of cutter blade& punching die | Cr12 mould steel with quenched treatment, HRC58-60 |
| Material of shaft | High quality 45# steel with heat treatment.Roller grinder milling. |
| Power Requirement | Main motor power: 4X4 Kw(Depend on final design) |
|
| Hydraulic station power: 5.5Kw (Depend on final design) |
| Diameter of shaft for rollers | 82mm |
| Controlling system | Mitsubishi PLC & converter |
| Quantity of rollers | about 16 stations for main rollers |
| Weight of machine | About 23000KGS |
| Size of machine | About 17.5mX2.1mx1.6m |
Our Roll Forming Machine's Advantages
- Anti-rust roller: Cr12 mould steel being quenched treatment,HRC58-60, CNC machine tooled to increase rollers precision.
- Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
- Cutter blade: Cr12 mould steel with quenched treatment, long life time.
- High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
- People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
- Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

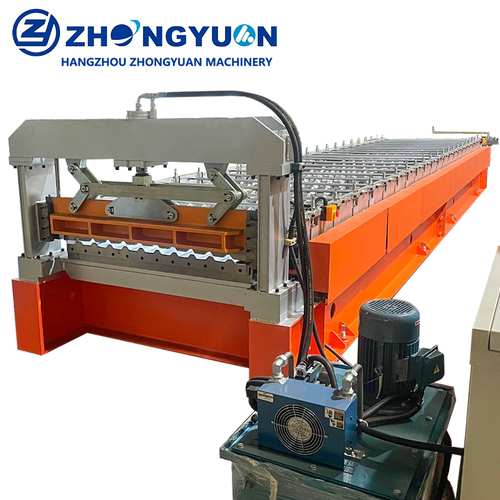

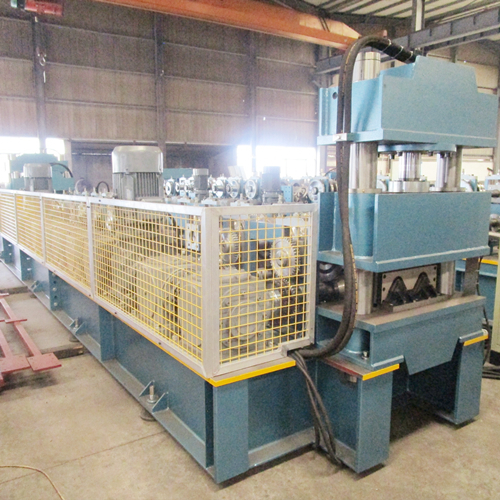

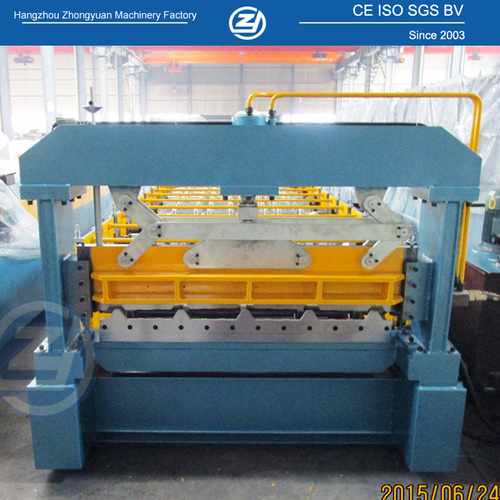

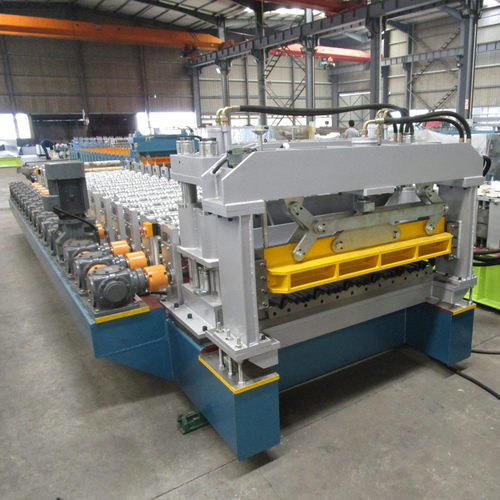

Other Products in 'Roll Forming Machines' category
