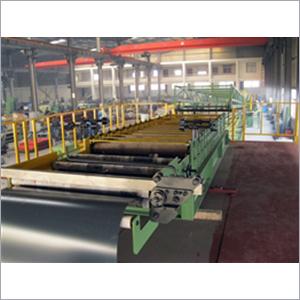

Send InquiryEPS Sandwich Panel Production Machine
Product Details:
EPS Sandwich Panel Production Machine Price And Quantity
- 36000.00 - 110000.00 USD ($)/Set
- 1 Set
EPS Sandwich Panel Production Machine Trade Information
- 20 Set Per Month
- 30 Days
Product Description
We are acknowledged as an affluent entity, engaged in offering a wide assortment of EPS Sandwich Panel Production Machine. This is precisely manufactured by utilizing the best grade materials and innovative technology in line with defined industry standards. Having P.L.C. controlled system with heavy-duty conveyor system, this is used in the construction of dry walls. Moreover, this EPS Sandwich Panel Production Machine is stringently tested on certain parameters of quality to ensure its flawlessness at customer’s end.
Features:
- Robust construction
- Less maintenance
- Easy to operate
| Panel thickness | Mini thickness | 50mm (wall panel) |
| Max. thickness | 200mm(exclude corrugated sandwich panel) | |
| Steel Sheet Spec | ||
| Thickness | 0.4-0.7mm color steel sheet | |
| Width | 1250mm (we can design according to buyer's requirement) | |
| Max. coil weight | 5 tons | |
| Inner Dia. of coil | 508mm | |
| Whole Line Spec | ||
| Whole line dimension | about 35000mm x 2500mm x 3000mm | |
| Total weight | About 18t | |
| Working speed | About 5-7m/min (adjustable) | |
| The output | 1500m2-2000m2/8hour | |
| Control mode | PLC and converter | |
| Total power | About 28Kw (as per final designing) | |
| Power required | 380V/3phase/50Hz or as per customer's requirement. | |
| Air pressure | 0.7Mpa (for buyer to prepare) | |
| Suitable working temperature | About 25 degree | |

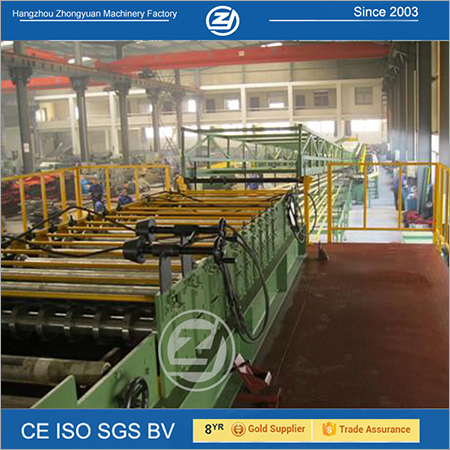

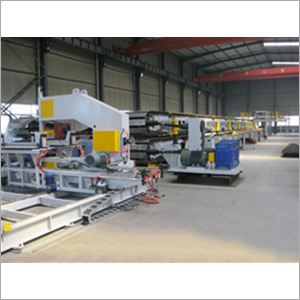

Other Products in 'Sandwich Panel Machine' category
