Send Inquirymetal corrugated sheet roll forming machine
Product Details:
- Type roll forming machine
- Material Steel coil sheet
- Capacity 25-30m/min m3/hr
- Automatic Grade Automatic
- Control System PLC Control
- Rolling Speed 25-30 m/m
- Cutting System hydraulic cuttingh
33000 USD ($)/Set
X
metal corrugated sheet roll forming machine Price And Quantity
- 33000 USD ($)/Set
- 1 Set
metal corrugated sheet roll forming machine Product Specifications
- hydraulic cuttingh
- 6200 Kilograms (kg)
- Automatic
- PLC Control
- blue
- roll forming machine
- Steel coil sheet
- 25-30 m/m
- 25-30m/min m3/hr
- 7.9*1.4*1.7 Meter (m)
- 415 Volt (v)
- 0.3-0.7 Millimeter (mm)
- 3 year
metal corrugated sheet roll forming machine Trade Information
- Ningbo or Shanghai port
- Telegraphic Transfer (T/T)
- 20 Set Per Month
- 90 Days
- PACKAGE: 1. need about 1*40GP container for loading one set machine completely; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.
- Australia, South America, Western Europe, Middle East, Central America, Asia, Eastern Europe, North America, Africa
- All India
- CE SGS
Product Description

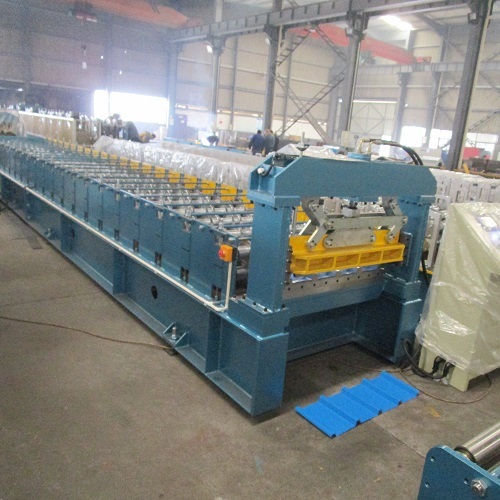

Corrugation Roof Panel Forming Machine
Coil Width:780mm
Suitable Raw Materials:0.2mm -0.3 mm, Pre-painted sheet
Quantity of forming rollers : About 16 stations
Line working speed (Forming speed):25m/min (without cut time)
Rollers material: plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensure long life of forming rollers.
Main machine motor power: about 5.5kW(Depend on final design)
Total weight : about 6200kg
Size of forming about 7.9*1.4*1.7MM (L*W*H)
Shipping :1x20GP container can load one machine.
