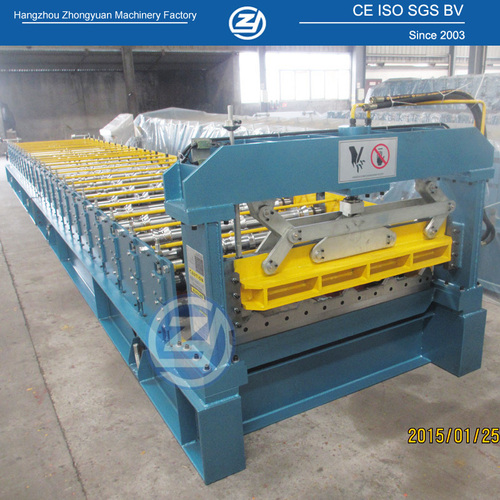

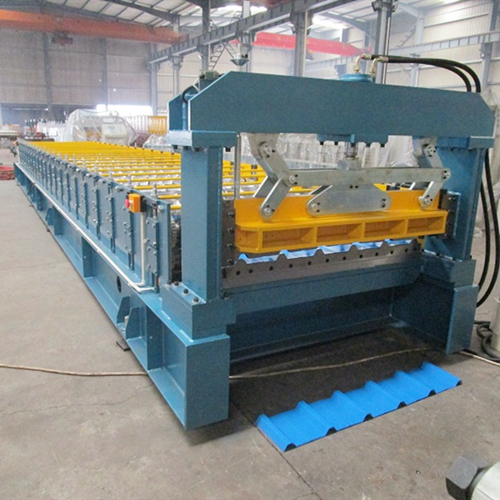

Roofing roll forming machine

Product Details:

Computerized Yes
Automatic Grade Automatic
Control System PLC Control
Rolling Speed 30-35 m/m
Cutting System Hydraulic cutting
Cutting Thickness 0.3-0.8 Millimeter (mm)
Voltage 415 Volt (v)
Share Your Product:

22000-39000 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

Roofing roll forming machine Price And Quantity

Minimum Order Quantity 1 Set
Price 22000-39000 USD ($)/Set
Price Range 22000.00 - 39000.00 USD ($)/Set

Roofing roll forming machine Product Specifications

Warranty 12months
Dimension (L*W*H) 10.3*1.6*1.6 Meter (m)
Computerized Yes
Control System PLC Control
Rolling Speed 30-35 m/m
Voltage 415 Volt (v)
Cutting Thickness 0.3-0.8 Millimeter (mm)
Color blue
Automatic Grade Automatic
Weight 9500 Kilograms (kg)
Cutting System Hydraulic cutting

Roofing roll forming machine Trade Information

FOB Port Ningbo
Payment Terms Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
Supply Ability 20 Set Per Year
Delivery Time 90 Days
Main Export Market(s) Western Europe, Australia, North America, Eastern Europe, Middle East, Central America, South America, Asia, Africa

Product Description

In order to fulfill the demands of our customers, we are engaged in offering Metal Wall Forming Machine to our customers. This machine is manufactured with quality tested raw materials and latest technology in compliance with set industrial norms. Widely known for its features like sturdy design, low maintenance and long shelf life, this machine is widely demanded in the market. Moreover, our quality controllers test this Metal Wall Forming Machine under various parameters to ensure its flawlessness and quality. Our customers can avail this Metal Wall Forming Machine from us at market leading prices.

Features:

Elegant design
Perfect finish
Excellent strength
Longevity

Specification :

Suitable Material	Q235 color steel sheet;0.3-0.7mm
Working speed	About 20m/min
Power Requirement	Main motor power: 7.5 Kw(Depend on final design)
	Hydraulic station power: 2.2 Kw(Depend on final design)
Material of forming rollers	No.45 steel, plated with chrome on surface.
Material of cutter	Cr12 mould steel with quench treatment, HRC58-60
Material of shaft	High quality 45# steel, Dia. is 72mm. Roller grinder milling.
Shaft diameter	72mm
Controlling system	Mitsubishi PLC & converter
Total weight of machine	About 8500KGS
Machine's size	About 15m x 1.8m x 1.5m (Depend on final design)

Technical parameter
Item		Specification
Material	Type	Pre-painted steel coil & galvanized coils
	Thickness(mm)	0.3-0.7
	Yield strength(mpa)	235-345
Roller material		45#Chrome steel
Forming speed(m/min)		About 20-25
Output speed(m/min)		12
Speed adjusting mode		AC Frequency
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		5.5KW
Total power(kw)		7.7KW
Components of machine
Decoiler		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Hydraulic cutting system		1set
Controlling system		1set
Output table		2set s
Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting Ã¢â‚¬â€œ Stacking sheets

Other Products in 'Roll Forming Machines' category

Color steel Glazed tile roofing tile making machine roll forming machine Price : 50000 USD ($)/Set Minimum Order Quantity : 1 Computerized : No Rolling Speed : 56 m/m Voltage : 415 Volt (v) Control System : PLC Control Cutting Thickness : 0.40.6 Millimeter (mm) Automatic Grade : Automatic

Send Inquiry

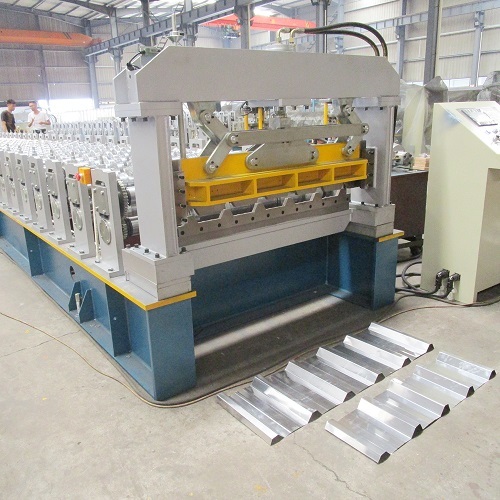

Roll Forming Line Minimum Order Quantity : 1 Computerized : Yes Rolling Speed : 3035 m/m Voltage : 415 Volt (v) Control System : PLC Control Cutting Thickness : 0.30.8 Millimeter (mm) Automatic Grade : Automatic
