Send InquirySheet Forming Machine
Product Details:
- Computerized Yes
36000-110000 USD ($)/Set
X
Sheet Forming Machine Price And Quantity
- 36000-110000 USD ($)/Set
- 36000.00 - 110000.00 USD ($)/Set
- 1 Set
Sheet Forming Machine Product Specifications
- Yes
Sheet Forming Machine Trade Information
- 20 Set Per Year
- 90 Days
Product Description

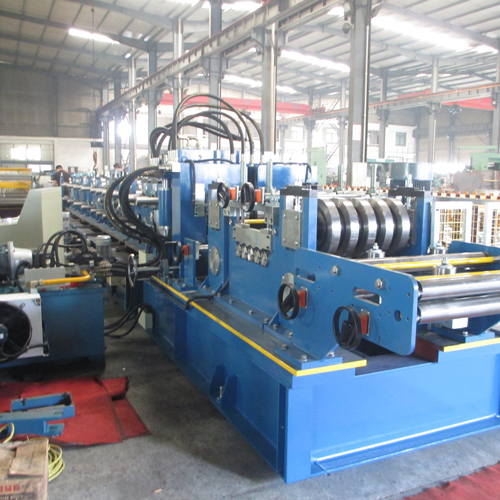

As a profound organization, we are successfully running our business by offering power efficient collection of Sheet Forming Machine. This machine is mainly demanded for continuous bending sheet metal and coiled steel into required cross-section. Our experienced experts manufacture this machine using optimum grade components and latest techniques. For its efficient working, this Sheet Forming Machine is especially designed with decoiler and controlling system.
Features:
- Robust design
- High speed functioning
- Corrosion resistant body
- Needs low maintenance
Sheet Forming Machine
- Certificate: ISO, CE
- Control system: Mitsubishi PLC from Japan
Machine components:
- Decoiler (manual decoiler and hydraulic decoiler for option) : 1 set
- Feeding & guiding device : 1 set
- Main roll forming machine : 1 set
- Hydraulic cutting system : 1 set
- Controlling system : 1 set
- Run out table (auto. Stacker for option) : 2 pcs
Process flow:
- Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting Product to Run Out Table
Parameters
| Item | Specification | |
| Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness (mm) | 0.4-0.7 | |
| Yield strength (mpa) | 235-345 | |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | About 20 | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mold steel | |
| Length measurement | Encoder | |
| Main motor power (kw) | 7.5 kw (Depend on final design) | |
| Hydraulic station power | 2.2 kw (Depend on final design) | |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) | |
| Machine`s size | About 11*1.6*1.6m (Depend on final design) | |
Why us?
- Customize roll forming machines since 2003.
- Capacity: 12-15 sets/month
- Delivery: in only 5-8 weeks for urgent order
- Company occupies 6650, in which 5650 for workshops
- Have our own tool center. 12 sets CNC machines.
- Technician can be sent to your factory to install the machine and train your workers
