Deck roll forming machine

Product Details:

Computerized Yes
Automatic Grade Automatic
Control System PLC Control
Rolling Speed 20-25 m/m
Cutting System Hydraulic cutting
Cutting Thickness 0.8-1.2 Millimeter (mm)
Voltage 415 Volt (v)
Share Your Product:

48000-59000 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

Deck roll forming machine Price And Quantity

Price 48000-59000 USD ($)/Set
Minimum Order Quantity 1 Set
Price Range 48000.00 - 59000.00 USD ($)/Set

Deck roll forming machine Product Specifications

Control System PLC Control
Automatic Grade Automatic
Weight 20000 Kilograms (kg)
Voltage 415 Volt (v)
Rolling Speed 20-25 m/m
Warranty 12months
Dimension (L*W*H) 18*1.8*1.6 Meter (m)
Color Blue
Cutting System Hydraulic cutting
Computerized Yes
Cutting Thickness 0.8-1.2 Millimeter (mm)

Deck roll forming machine Trade Information

Payment Terms Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)
Supply Ability 20 Set Per Year
Delivery Time 90 Days
Main Export Market(s) Western Europe, Australia, North America, Eastern Europe, Middle East, Africa, Central America, South America, Asia

Product Description

PRODUCT DESCRIPTION

Technical Data of Decking Roll Forming Machine

Suitable material	Q235 color steel sheet;0.8-1.2mm,
Forming speed	about 18-20m/min
Power Requirement	Main motor power: 11X2 Kw(Depend on final design)
	Hydraulic station power: 5.5Kw(Depend on final design)
Material of forming rollers	No.45 steel, plated with chrome on surface.
Material of cutter	Cr12 mould steel with quench treatment, HRC58-60
Material of shaft	High quality 45# steel with heat treatment. Roller grinder milling.
Shaft diameter	82mm
Controlling system	Mitsubishi PLC & converter
Total weight of machine	About 16500KGS
MachineÃ¢â‚¬â„¢s size	about 26mÃƒâ€”1.8mÃƒâ€” 1.5m (Depend on final design)
Shipping	1x40GP and 1X20GP containers can load one machine

Product Application:

The metal deck produced by floor deck forming machine is used as decking of building; It has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight. With the same bearing capacity, it economized steel and cuts down investment accordingly.

Other Products in 'Roll Forming Machines' category

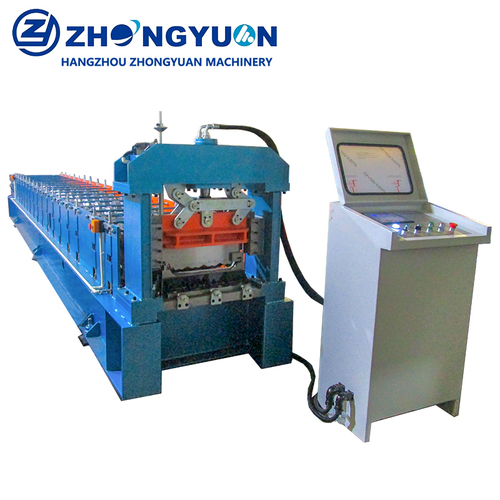

Joint-Hidden Aluminum Profile Standing Seam Metal Roof Cold Roll Forming Machine Price : 28000 USD ($)/Set Minimum Order Quantity : 1 Computerized : No Automatic Grade : Automatic Voltage : 415 Volt (v) Warranty : 1 Weight : 6500 Kilograms (kg) Control System : PLC Control Rolling Speed : 2530 m/m Dimension (L*W*H) : 7.5X1.7x1.8 Meter (m) Cutting System : Hydraulic cutting system Cutting Thickness : 0.40.7 Millimeter (mm) Color : blue Type : ROLL FORMING MACHINE Material : steel coil sheet

Send Inquiry

Steel Liner Forming Roofing Sheet Machine Price : 47000 USD ($)/Set Minimum Order Quantity : 1 Computerized : No Automatic Grade : Automatic Voltage : 415 Volt (v) Warranty : 3 year Weight : 7200 Kilograms (kg) Control System : PLC Control Rolling Speed : 2025 m/m Dimension (L*W*H) : 7.5*2.2* 1.7 Meter (m) Cutting System : hydraulic cutting Cutting Thickness : 0.30.7 Millimeter (mm) Color : blue Type : roll forming machine Material : Steel coil sheet

Send Inquiry

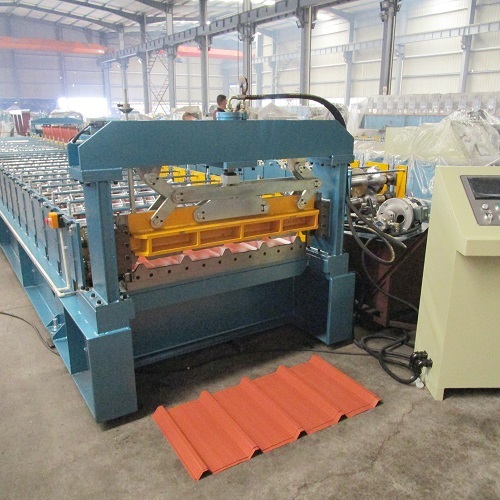

Precision Metal Roll Forming Machine Price : 25000-35000 USD ($)/Set Minimum Order Quantity : 1 Computerized : Yes Automatic Grade : Automatic Voltage : 415 Volt (v) Warranty : 12 months Weight : 8500 Kilograms (kg) Control System : PLC Control Rolling Speed : 2025 m/m Dimension (L*W*H) : 10*1.6*1.6 Meter (m) Cutting System : Hydraulic cutting Cutting Thickness : 0.30.8 Millimeter (mm)
