Send InquiryStanding Seam Roof Roll Forming Machine
Product Details:
- Computerized Yes
- Voltage 415 Volt (v)
Standing Seam Roof Roll Forming Machine Price And Quantity
- 1 Set
- 23000-50000 USD ($)/Set
- 23000.00 - 50000.00 USD ($)/Set
Standing Seam Roof Roll Forming Machine Product Specifications
- Yes
- 415 Volt (v)
Standing Seam Roof Roll Forming Machine Trade Information
- Ningbo
- Letter of Credit (L/C), Telegraphic Transfer (T/T)
- 50 Set Per Year
- 60 Days
- Australia, North America, South America, Eastern Europe, Western Europe, Africa, Central America, Asia
- All India
- ISO, CE
Product Description

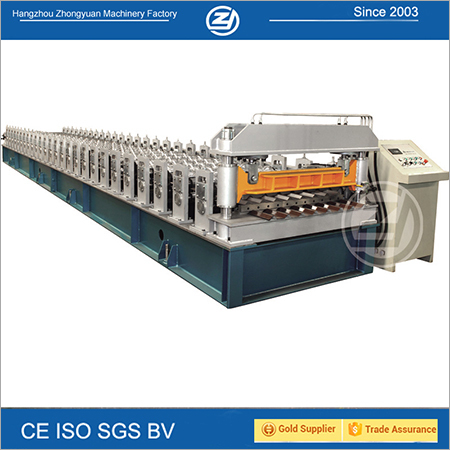

Standing seam roof roll forming machine
We hold an immense clientele in the market by manufacturing, exporting and supplying a quality assured array of Metal Forming Machine. Finding application at metal working industries, this is used for reshaping of work piece as per requirement through bending or shearing. In accordance with industry norms, offered machine is manufactured by a team of dedicated professionals using ultra modern techniques at well equipped premises. Our esteemed patrons can avail the provided Metal Forming Machine from us at competitive prices.
Key Points:
- Hassle free functioning
- Simple installation
- Robust construction
- Less noisy
Technical Details:
- Model NO.: ZYYX23-103
- Forging Forming Method: Cold Roll Forming
- Feature: Automation
- Warranty: 12 Months
- Advantage: Easy to Maintenance
- Brand Name: Zhongyuan
- Rollers Material: High Grade No.45 Forged Steel
- Control System: Mitsubishi PLC and Transducerr
- Shaft Diameter: 55mm
- Machine Dimension: About 6.5m; 1.3m; 1.6m
- Trademark: Zhongyuan
- Specification: CE SGS BV
- HS Code: 84552210
- Type: Rolling Machine
- Power Source: Electric
- Certification: SGS, ISO9001, CE
- Customized: Customized
- Condition: New
- Application: Shutter Door
- Cutting Blade: Cr12 Mould Steel with Quenched Treatment
- Suitable Raw Materials: Pre-Painted Galvanized Steel Sheet
- Line Working Speed: About 20-25m/Min (Without Cut Time)
- Name: Standing seam roof roll forming machine
- Transport Package: 40pg
- Origin: China
| Item | Specification | |
| | Type | Pre-painted steel coil & galvanized coils |
| Thickness(mm) | 0.6-0.8 | |
| Yield strength(mpa) | 235-345 | |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | About 20-25 | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mould steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 4KW | |
| Total power(kw) | 6.2KW | |
| Components of machine | ||
| Decoiler | 1set | |
| Feeding & guiding device | 1set | |
| Main roll forming machine | 1set | |
| Hydraulic cutting system | 1set | |
| Controlling system | 1set | |
| Output Table | 1set | |
| Process flow | ||
| Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - Output Table | ||
