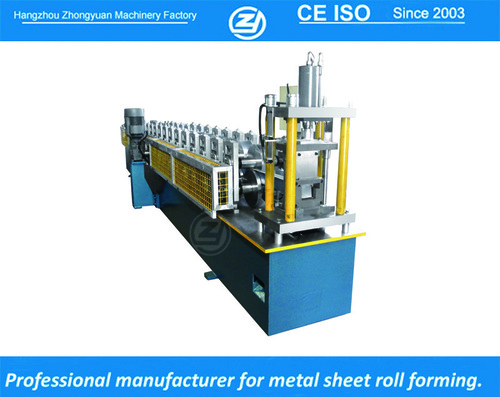

Send InquiryAutomatic Drywall Metal Stud and Track C UPurlin Roll Forming Machine
Product Details:
- Type ROLL FORMING MACHINE
- Material steel coil sheet
- Capacity 20m/min
- Computerized No
- Automatic Grade Automatic
- Control System PLC Control
- Rolling Speed 20 m/m
Automatic Drywall Metal Stud and Track C UPurlin Roll Forming Machine Price And Quantity
- 48000.00 - 50000.00 USD ($)/Set
- 49000 USD ($)/Set
- 1 Set
Automatic Drywall Metal Stud and Track C UPurlin Roll Forming Machine Product Specifications
- ROLL FORMING MACHINE
- 1.0-2.0 Millimeter (mm)
- 10.3*1.3*1.6 Meter (m)
- 1
- No
- 8215 Kilograms (kg)
- Automatic
- 20m/min
- 415 Volt (v)
- PLC Control
- 20 m/m
- blue
- Hydraulic cutting system
- steel coil sheet
Automatic Drywall Metal Stud and Track C UPurlin Roll Forming Machine Trade Information
- Ningbo port or Shanghai port
- Telegraphic Transfer (T/T)
- 10 Set Per Month
- 90 Days
- 1*40GP container
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
- CE SGS ISO
Product Description
Drain Channel Roll Forming Machine
Quick Details:
Brand: Zhongyuan
Machine model:Drain Channel Roll Forming Machine
Yield strength :345Mpa ,0.4-0.7mm
Electrical motor : 5.5KW
Hydraulic motor power: 5.5KW
Production-speed: about 20m/min.
Forming rollers DETAILS: rollers material is No.45 steel, CNC process, plated with chrome on surface.
Machine Size: 11.5 m*1.1m* 1.7m
Blade material : CR12MOV. , after heat treatment HRC58-60 .
Punching material: CR12MOV
Control system : Mitsubishi PLC and screen.
Warranty : 24 months
Drain Channel Roll Forming Machine Function
C purlin products rolled by this machine have good bending and compression performance, good flatness, automatic fixed length cutting, automatic punching, high degree of automation, quick and convenient installation. The product can be used as the main force structure of large and medium-sized industrial and civil buildings, such as factory building, warehouse, locomotive depot, hangar, exhibition hall, movie theater, sports stadium, market flower shed roof load and wall support.
