Stud and Track Forming Machine

Product Details:

Computerized Yes
Share Your Product:

20000-45000 USD ($)/Set

Get a Price/Quote

Request To Call Back Send Inquiry

Stud and Track Forming Machine Price And Quantity

Minimum Order Quantity 1 Set
Price 20000-45000 USD ($)/Set
Price Range 20000.00 - 45000.00 USD ($)/Set

Stud and Track Forming Machine Product Specifications

Computerized Yes

Stud and Track Forming Machine Trade Information

Payment Terms Letter of Credit (L/C), Telegraphic Transfer (T/T)
Supply Ability 80 Set Per Year
Delivery Time 50 Days
Main Export Market(s) Western Europe, Australia, North America, South America, Eastern Europe, Middle East, Central America, Asia, Africa
Main Domestic Market All India

Product Description

The Stud and Track Forming Machine is the best way to get started in stud and track production or to increase your capacity. This machine offers an throughout solution that allows you to produce stud sizes that are used in the industry with a single machine. Its quick changing functionality gives you particular flexibility as required, and production is continuous for maximum efficiency. Apart from that, our Stud and Track Forming Machine is offered to our customers in various specifications at industrial leading prices.

Salient features:

Long service life
Easy installation
Easy maintenance
Corrosion resistant surface finish

Detailed Product Description :

Roller Material:	No.45 Steel, Plated With Chrome On Surface.	Cutter Material:	Cr12 Mould Steel
Main Motor:	5.5KW	Hydraulic Power:	5.5KW
Controller:	Mitsubishi PLC, Screen	Cutting Style:	Automatic Cut To Length
Punching:	For Option	Machine's Size:	7500 x 1200 x 1500mm (LXWXH)
Forming Speed:	About 20m/min.	Guarantee:	Two Years Guarantee Time, Lifetime Service

Metal 440V Stud and Track Roll Forming Machine Mitsubishi PLC , Plated With Chrome

Technical data of Stud & track cold roll forming machine :

Suitable Material	Cold-rolled steel strip and heat-treated galvanized steel strip
Thickness of raw material	0.5-0.8 mm (235-345Mpa)
Material of roller	45# steel being quenched treatment
Material of cutter blade& punching die	Cr12 mould steel with quenched treatment, HRC58-60
Material of shaft	High quality 45# steel with heat treatment. Roller grinder milling.
Forming speed	about 20m/min
Power Requirement	Main motor power: 5.5 Kw(Depend on final design)
Power Requirement	Hydraulic station power: 5.5 Kw (Depend on final design)
Diameter of shaft for rollers	55 mm
Controlling system	Mitsubishi PLC & converter
Quantity of rollers	about 15 stations for main rollers
Weight of machine	About 5500KGS
Size of machine installation	about 15m x 1.7 m x1.5m

Other Products in 'Stud and Track Roll Forming Machine' category

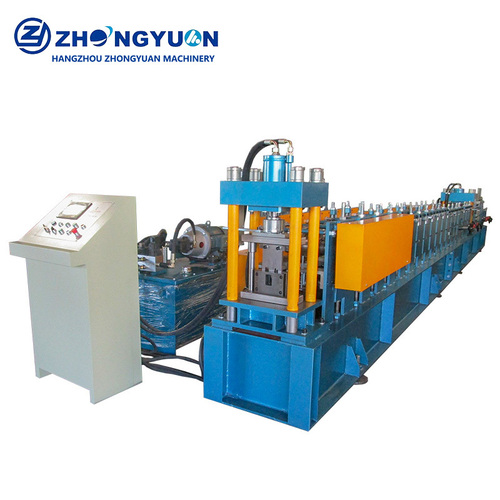

Automatic Drywall Metal Stud and Track C UPurlin Roll Forming Machine Price : 49000 USD ($)/Set Minimum Order Quantity : 1 Computerized : No Cutting Thickness : 1.02.0 Millimeter (mm) Automatic Grade : Automatic Cutting System : Hydraulic cutting system Weight : 8215 Kilograms (kg) Dimension (L*W*H) : 10.3*1.3*1.6 Meter (m) Voltage : 415 Volt (v) Color : blue Control System : PLC Control Rolling Speed : 20 m/m Warranty : 1 Material : steel coil sheet Type : ROLL FORMING MACHINE Capacity : 20m/min

Send Inquiry

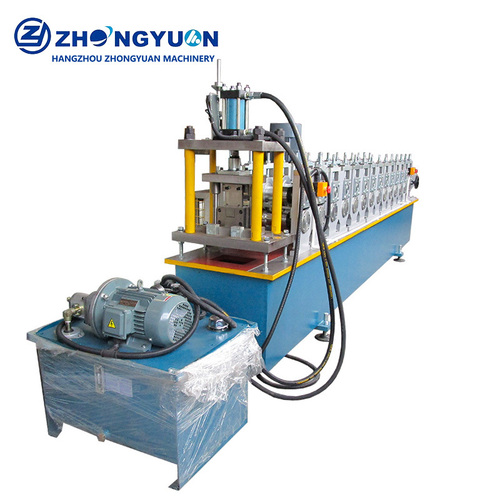

C U stud and track roll forming machine Price : 33000 USD ($)/Set Minimum Order Quantity : 1 Computerized : No Cutting Thickness : 0.40.5 Millimeter (mm) Automatic Grade : Automatic Cutting System : hydraulic cuttingh Weight : 3000 Kilograms (kg) Dimension (L*W*H) : 4.8 x 1.1 x1.6 Meter (m) Voltage : 415 Volt (v) Color : blue Control System : PLC Control Rolling Speed : 2530 m/m Warranty : 3 year Material : Steel coil sheet Type : C U stud and track roll forming machine Capacity : 2530m/min m3/hr

Send Inquiry

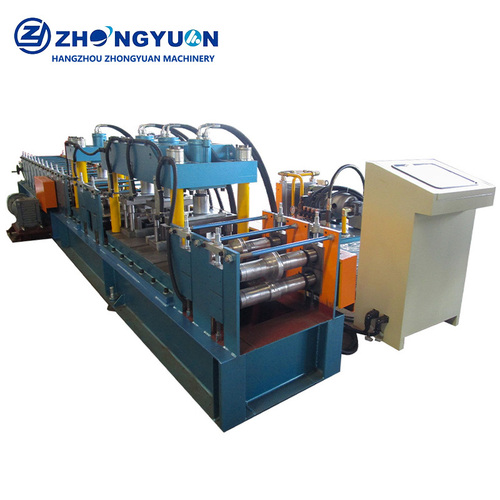

stud and c channel roll forming machine Price : 44000 USD ($)/Set Minimum Order Quantity : 1 Computerized : No Cutting Thickness : 1.53.0 Millimeter (mm) Automatic Grade : Automatic Cutting System : hydraulic cutting Weight : 3935 Kilograms (kg) Dimension (L*W*H) : 6.9*1.2*1.35 Meter (m) Voltage : 415 Volt (v) Color : blue Control System : PLC Control Rolling Speed : 2530 m/m Warranty : 3 year Material : Steel coil sheet Type : roll forming machine

Send Inquiry

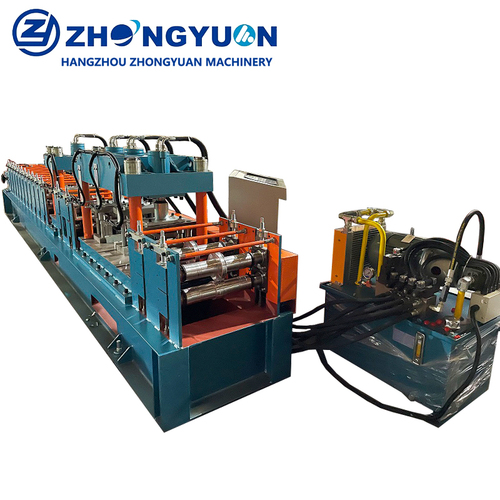

high speed drywall profile adjustable size C stud roll forming machine for sale Price : 39000 USD ($)/Set Minimum Order Quantity : 1 Cutting Thickness : 0.41 Millimeter (mm) Automatic Grade : Automatic Cutting System : Hydraulic cutting system Weight : 4000 Kilograms (kg) Dimension (L*W*H) : 6*1.2*1.4 Meter (m) Voltage : 415 Volt (v) Color : blue Control System : PLC Control Rolling Speed : 20 m/m Warranty : 1 Material : steel coil sheet Type : ROLL FORMING MACHINE
